Small Dredges
DRF Series
DRF Series
Ultra-Compact Dredging Solutions
Engineered for Performance

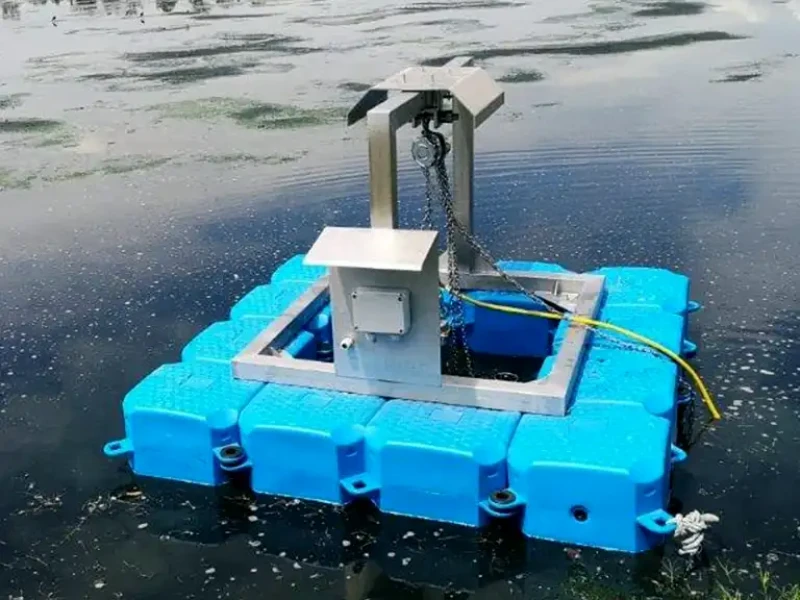

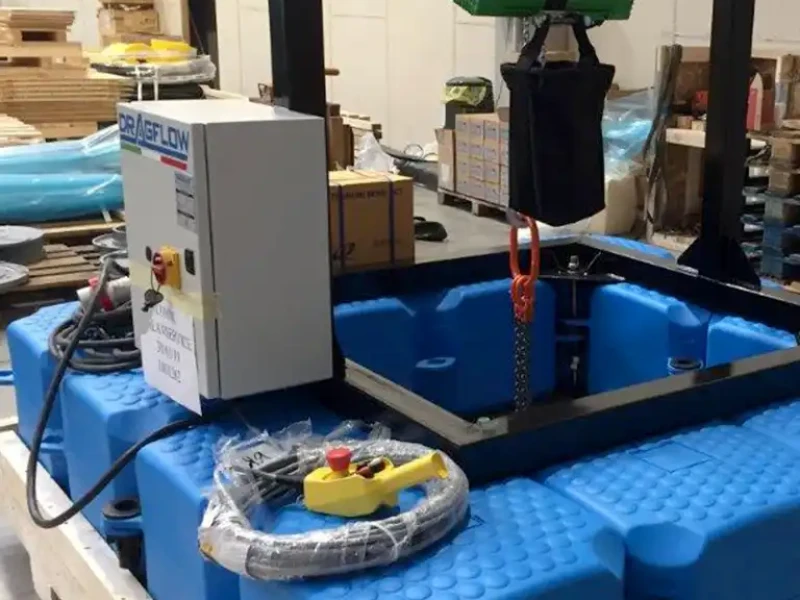

The DRF Series features floating polyethylene cubes for superior stability, an electric winch for precise pump positioning, and optional radio remote control for full operational flexibility. Power ranges from 35 to 94 hp, delivering consistent performance in demanding dredging operations.
Key Advantages:
Modular design for easy assembly and transport.
Reduced draft for shallow water applications.
Customizable configurations to match specific mining requirements.
Available Models
DRF30: Pump capacity up to 660 gpm – perfect for small-scale dredging.
DRF50: Pump capacity up to 880 gpm – compact yet powerful.
DRF80: Pump capacity up to 2,400 gpm – ideal for heavy-duty tasks.
DRF100: Pump capacity up to 2,900 gpm – maximum performance in a small footprint.
Model Specifications
| Model | Winch (lb) | Cable (ft) | Remote Control (ft) | Length (ft) | Width (ft) | Height (lb) |
|---|---|---|---|---|---|---|
| DRF30 | 661 | 32.8 | 98.4 | 6.6 | 6.6 | 4.9 |
| DRF50 | 1,235 | 32.8 | 98.4 | 8.2 | 8.2 | 7.5 |
| DRF80 | 1,764 | 32.8 | 98.4 | 11.5 | 11.5 | 8.5 |
| DRF100 | 4,409 | 32.8 | 98.4 | 13.1 | 11.5 | 12.1 |
