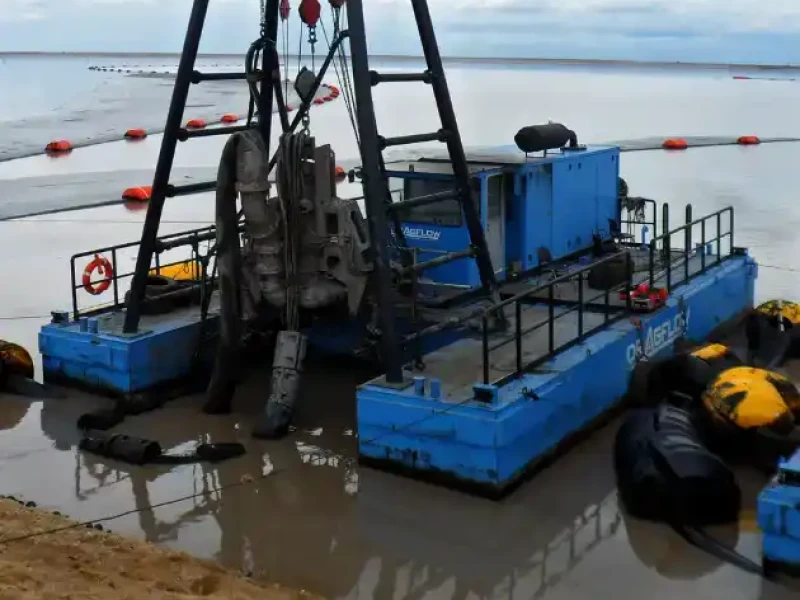

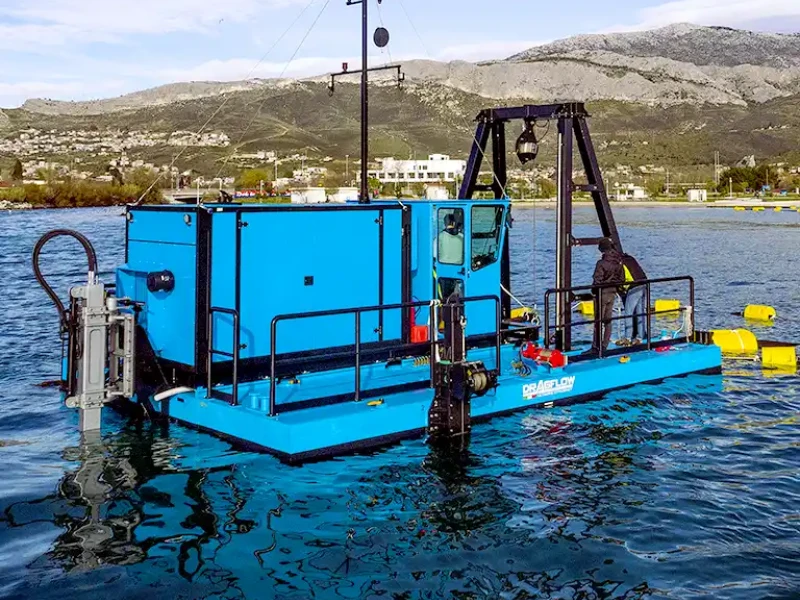

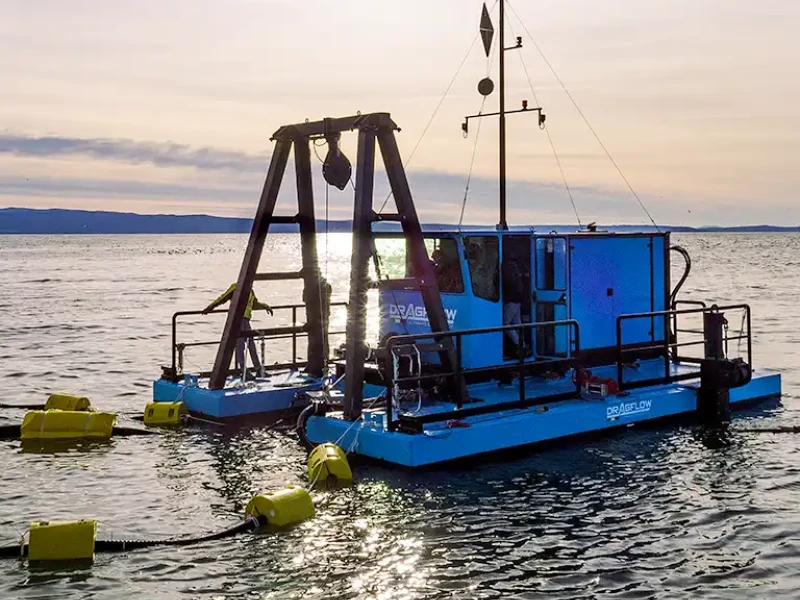

Cable Dredges
DRH Series
DRH Series
Easy to Handle, Built for Performance
The DRH Series cable dredges are engineered for mining operations that demand high productivity at great depths. With a modular design and intuitive controls, these dredges combine power, durability, and efficiency in one solution.
Key Advantages
High Depth Capability: Operates beyond 660 ft for deep mining applications.
Modular Design: Quick assembly in less than 10 hours, reducing start-up time and costs.
Flexible Power Options: Available in hydraulic or electric versions.
Wide Pump Compatibility: Equip with different pump models for maximum versatility.
Compact Hull & Limited Draft: Ideal for varied environments, from dams to tailing ponds.
Main Features
Easy to use with intuitive controls
High productivity and fast start-up
Maximum flexibility with multiple pump options
Cost-effective transport and rapid installation
Model Specifications
| Model | Weight (lb) | Draft (in) | Length (ft) | Width (ft) | Height (lb) |
|---|---|---|---|---|---|
| DRH85 | 66,139 lb | 23.6 in | 26.2 ft | 19.7 ft | 16.4 ft |
| DRH85/160 | 66,139 lb | 23.6 in | 26.2 ft | 19.7 ft | 16.4 ft |
| DRH300 | 99,208 lb | 35.4 in | 37.7 ft | 26.2 ft | 24.6 ft |
| DRH400 | 110,231 lb | 35.4 in | 37.7 ft | 26.2 ft | 24.6 ft |
| DRH600 | 132,277 lb | 35.4 in | 37.7 ft | 26.2 ft | 24.6 ft |
