Electric Pumps
EL Series Small Range
5-29 hp / 132-440 gpm

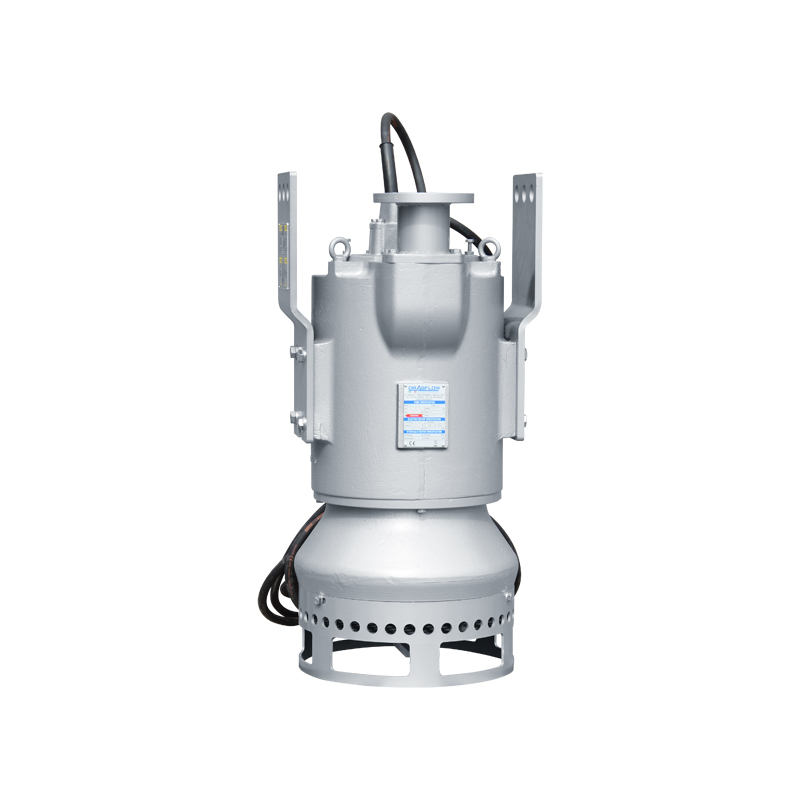

EL Series Small Range
High-performance electric dredging pumps

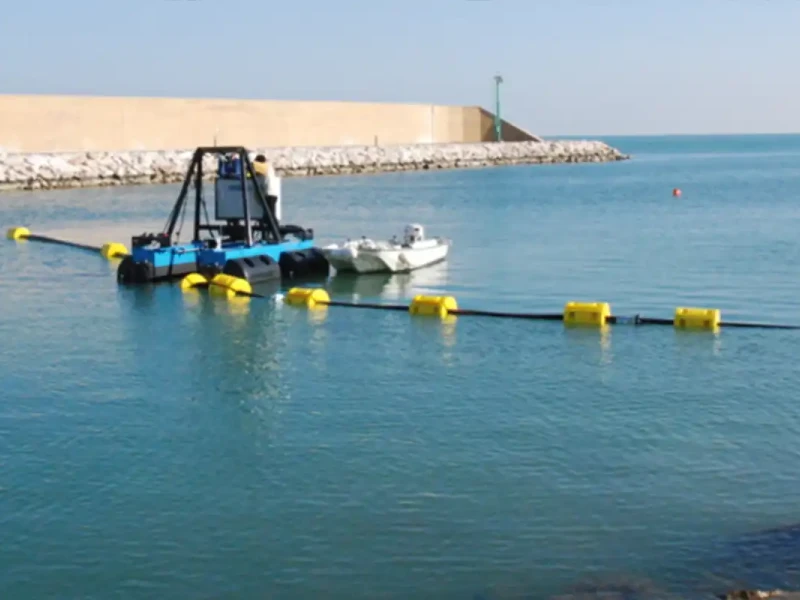

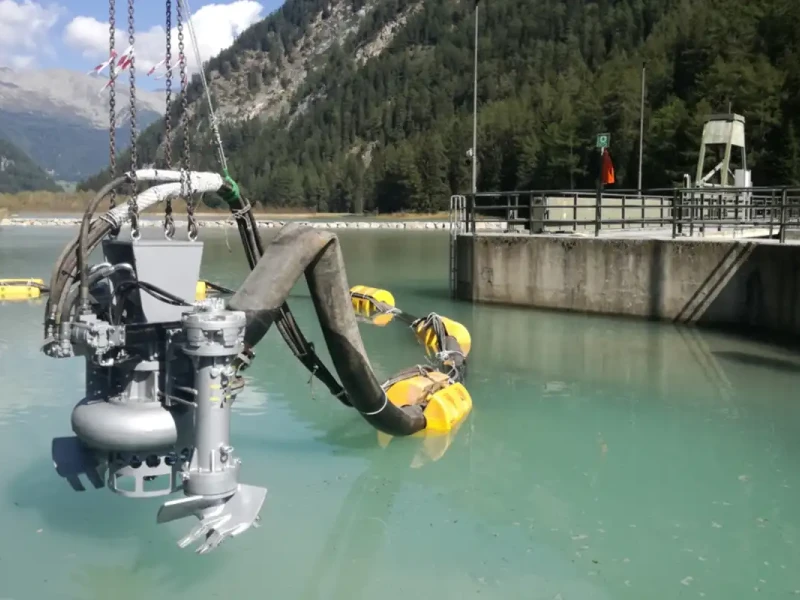

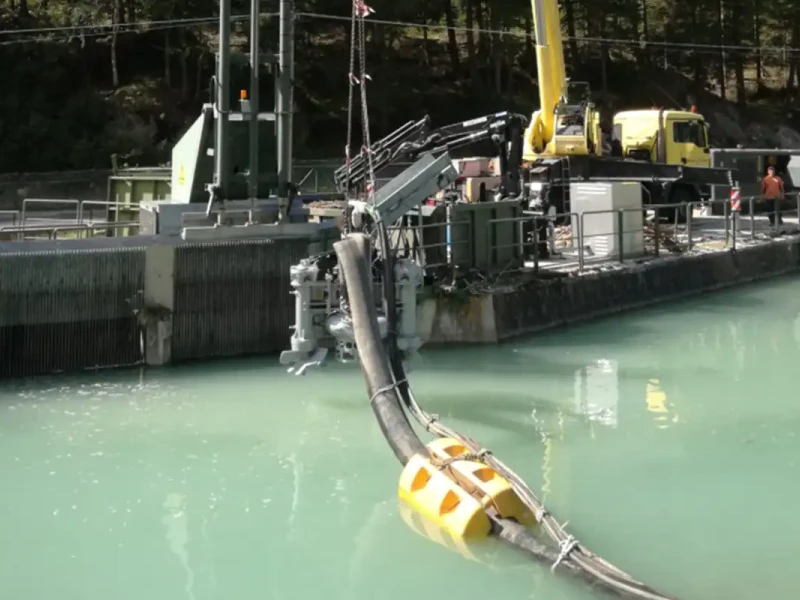

The EL Series small range models are high-performance electric pumps designed for exceptional abrasion resistance and capable of handling material concentrations of up to 70%. Engineered for industrial, mining, and dredging operations across various sectors, they ensure optimal efficiency and sustained productivity.
High-efficiency agitator – Reversible and constructed from high-chrome materials for extended service life and reliable lifting of settled sediments.
Low rotational speed – Minimizes wear and preserves long-term performance.
Robust construction – Built with heavy-duty, abrasion-resistant components to handle demanding, high-solid content mixtures.
EL7.5, EL10, EL12.5 and EL20 are also available in super duplex stainless steel (CD3MN).
Model Specifications
| Model | Delivery (in) | Capacity (gpm) | Head (ft) | Power (HP) | RPM (60 Hz) | Solid Handling (in) | Weight (lb) |
|---|---|---|---|---|---|---|---|
| EL5 | 3 | 132 | 39 | 5 | 1740 | 0.8 | 485 |
| EL7.5 | 4 | 264 | 39 | 7.4 | 1740 | 1 | 595 |
| EL7.5 S | 4 | 264 | 39 | 10 | 1740 | 1 | 617 |
| EL7.5 SS | 4 | 264 | 39 | 12 | 1740 | 1 | 617 |
| EL10 | 4 | 264 | 49 | 10 | 1740 | 1 | 617 |
| EL10 S | 4 | 264 | 49 | 12 | 1740 | 1 | 640 |
| EL10 SS | 4 | 264 | 49 | 14.7 | 1740 | 1 | 640 |
| EL12.5 | 4 | 264 | 62 | 12 | 1740 | 1 | 640 |
| EL12.5 S | 4 | 264 | 62 | 14.7 | 1740 | 1 | 640 |
| EL12.5 SS | 4 | 264 | 62 | 17.4 | 1740 | 1 | 640 |
| EL20 | 4 | 440 | 65 | 20 | 1740 | 1 | 1180 |
| EL20 S | 4 | 440 | 65 | 24 | 1740 | 1 | 1223 |
| EL20 SS | 4 | 440 | 65 | 29 | 1740 | 1 | 1235 |
